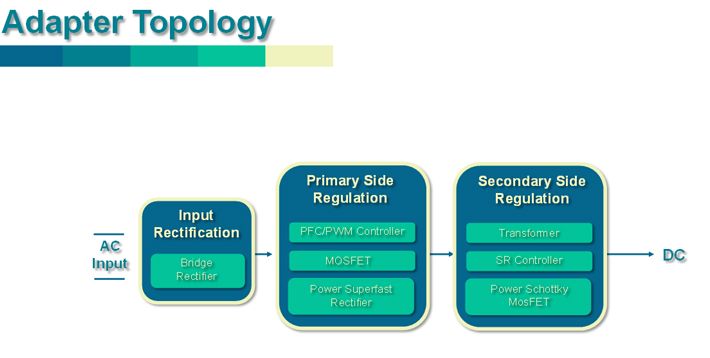

Adapter Topology
Adapter Application
| Application | Function | Spec. | Package Type | Recommended Parts |
|---|---|---|---|---|
| Primary Side Regulation | PWM/PFC Controller | 1A/200V trr=50ns | SOD-123FL | US1002FL |
| SMA | US1D | |||
| 1A/400V trr=35ns | SOD-123FL | ES1004FL | ||
| SMA | ES1G | |||
| 2A/200V trr=50ns | SOD-123FL | US2002FL | ||
| SMA | US2D | |||
| 2A/400V trr=35ns | SOD-123FL | ES2004FL | ||
| SMA | ES2G | |||
| Secondary side Regulation | SR Controller | N-CH 40V 1.8mOhm | DFN5X6A-EP1 | PAN40S48Y |
| N-CH 60V 4.8mOhm | DFN5X6A-EP1 | PAN60T24AY | ||
| N-CH 80V 6.5mOhm | DFN5X6A-EP1 | PAN80T24AY | ||
| N-CH 100V 10mOhm | DFN5X6A-EP1 | PAN00T24AY | ||
| 3A/45V Schottky diode | SMA-S | SS3045LAS | ||
| 3A/60V Schottky diode | SOD-123HE | SS3060LHE |
